IoT Performance Testing: MQTT, CoAP & Device Simulation Guide

Most IoT failures in production were detectable before deployment — if the right tests existed. The problem is that the performance testing playbooks most engineering teams rely on were built for HTTP request-response cycles, browser-based user flows, and stateless web architectures. Apply those assumptions to an MQTT broker handling 10,000 persistent sensor connections, a CoAP endpoint operating over lossy UDP on a 6LoWPAN mesh, or an AMQP pipeline routing transactional telemetry through a multi-stage edge gateway, and you get test results that look green in staging and collapse in production.

This guide exists because that gap keeps catching teams off guard. If you’re a QA lead, SRE, or performance engineer responsible for validating IoT systems before they ship, you already know the generic advice doesn’t translate. What follows is a protocol-to-production playbook: specific load behavior mechanics for MQTT, CoAP, and AMQP under pressure, a device simulation framework that actually catches production-scale failures, broker bottleneck detection methodology with concrete thresholds, and edge pipeline latency instrumentation that most teams skip entirely.

Here’s what we’ll cover: protocol-specific failure modes and testing strategy, scalable device simulation across four fidelity dimensions, message broker load patterns with pass/fail criteria, and edge computing latency plus telemetry validation techniques.

1. Why IoT Breaks Every Performance Testing Rule You Already Know
2. The Three Protocols That Define IoT Load Behavior: MQTT, CoAP, and AMQP Under Pressure
   1. MQTT Under Load: QoS Degradation, Broker Saturation, and Connection Storm Patterns
   2. CoAP Performance Testing: Navigating UDP Unreliability and Congestion Control Constraints
   3. AMQP in Enterprise IoT: Channel Contention, Queue Depth, and Broker Throughput Limits
   4. Choosing the Right Protocol for Your Load Test: A Decision Framework
3. Simulating 10,000 Devices: How to Build a Scalable IoT Load Generation Strategy
   1. Connection Behavior Fidelity: Ramp Rates, Reconnect Logic, and the Connection Storm Problem
   2. Message Traffic Pattern Realism: Telemetry Cadence, Payload Diversity, and Burst Modeling
   3. Network Condition Emulation: Packet Loss, Jitter, and the Non-Deterministic IoT Network
4. Message Broker Load Testing: Preventing the Bottleneck That Silences Your Entire IoT Fleet
   1. Throughput Saturation Testing: Finding Your Broker’s True Ceiling Before Production Does
   2. Architectural Resilience Patterns: Partitioning, Clustering, and Failover Validation
5. Edge Computing Latency and Telemetry Validation: Testing the Layer Most Teams Ignore
   1. Measuring Edge-to-Cloud Latency Under Sustained IoT Load: What to Instrument and Where
   2. Telemetry Validation Under Load: Detecting Data Loss, Ordering Violations, and Corrupt Payloads
6. References and Authoritative Sources

Why IoT Breaks Every Performance Testing Rule You Already Know

The structural gap between web performance testing and IoT performance testing isn’t a matter of degree — it’s a category difference across four dimensions that consistently blind-side teams migrating their existing test infrastructure.

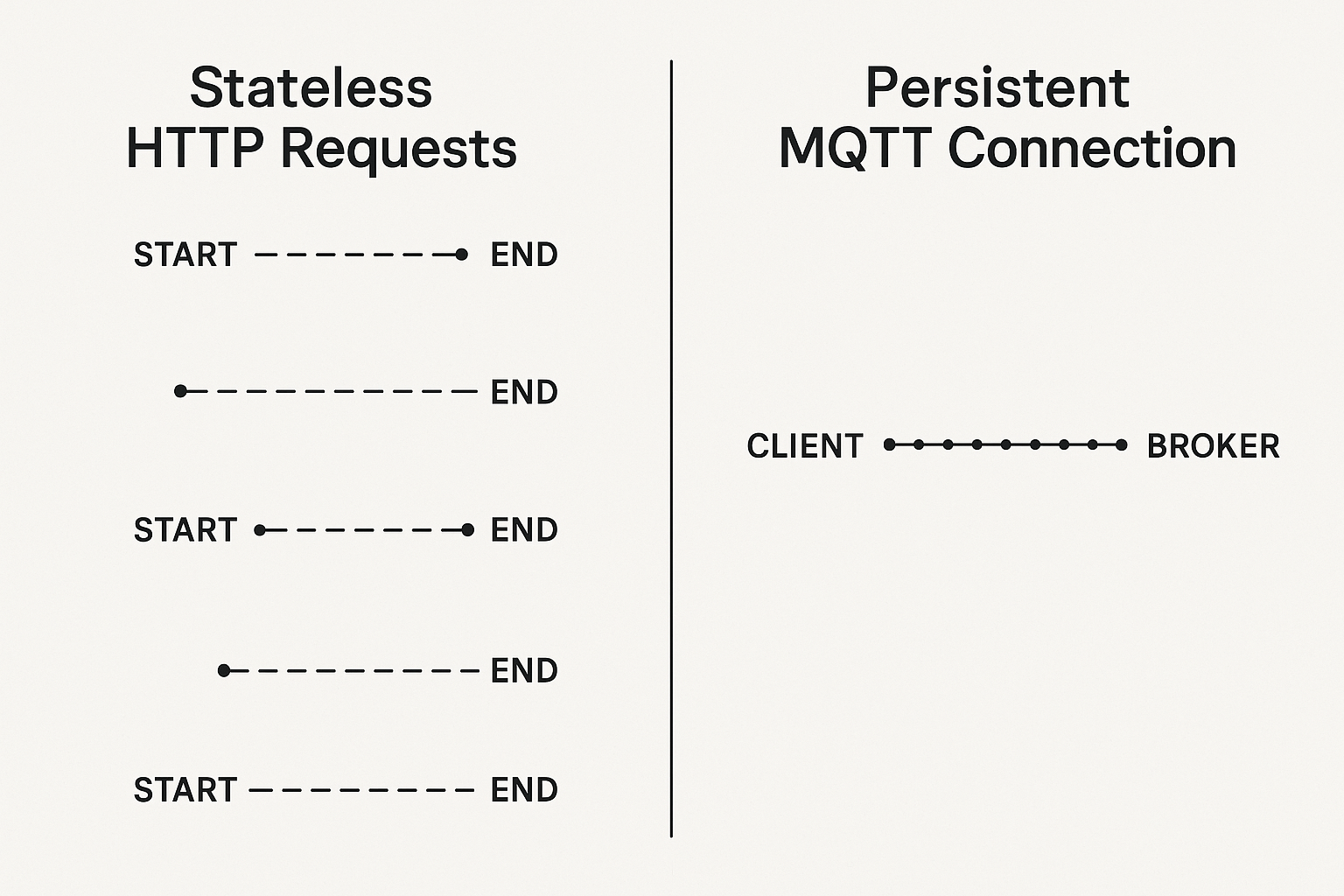

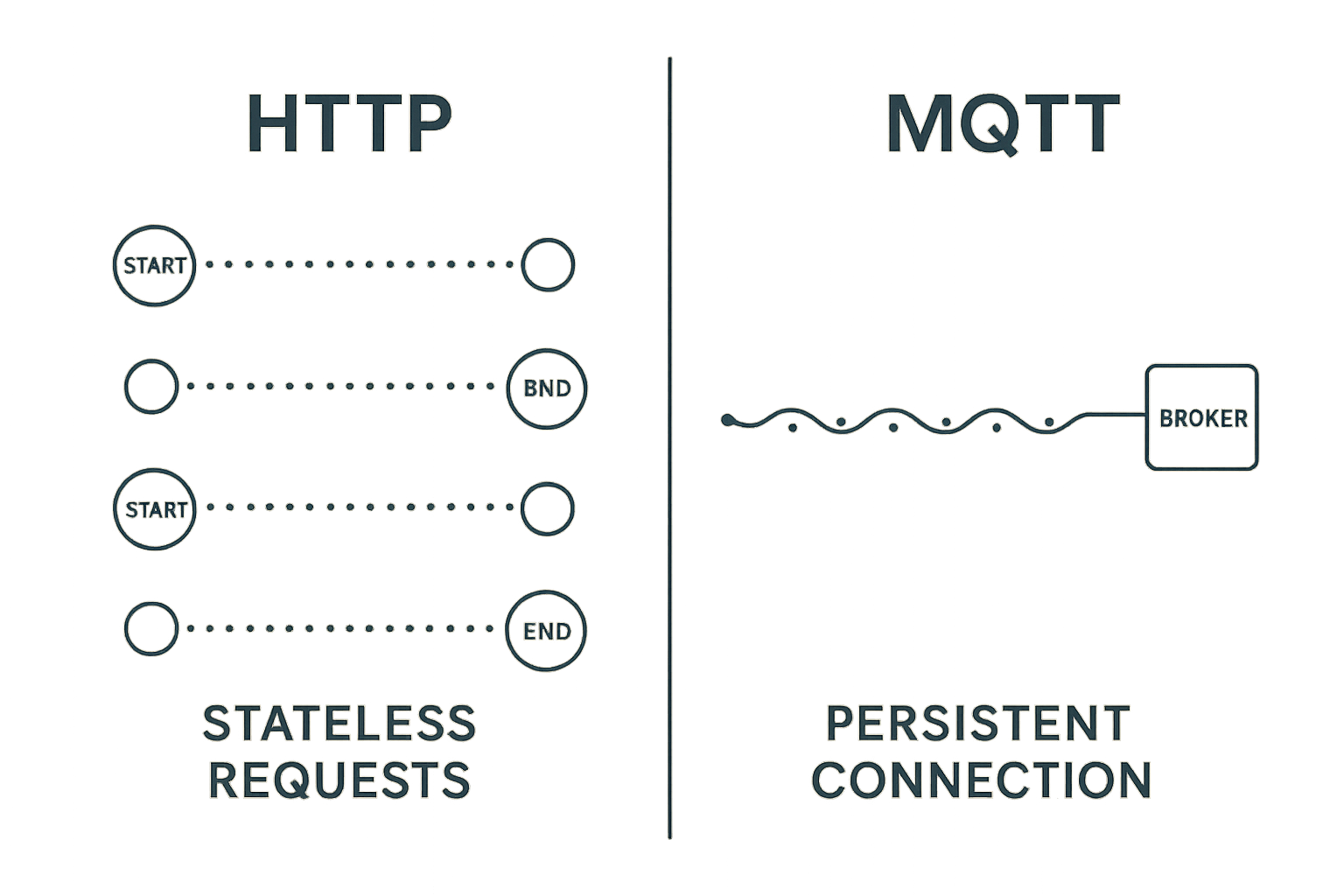

First, protocol architecture. HTTP is stateless request-response: a client opens a connection, sends a request, receives a response, and the connection either closes or idles. MQTT operates on persistent TCP connections where thousands of clients maintain long-lived sessions with a broker simultaneously, subscribing to topic trees and receiving pushed messages asynchronously. Your load tool’s concept of a “virtual user” performing sequential page requests has no mapping to an MQTT client that connects once, subscribes to three topics, and receives 200 messages per minute indefinitely.

Second, device constraints. IETF RFC 7252 — the normative CoAP specification authored by Shelby, Hartke, and Bormann — describes the target deployment environment as “nodes with 8-bit microcontrollers with small amounts of ROM and RAM” operating on networks with “a typical throughput of 10s of kbit/s” [1]. Your load tool’s default assumptions about client memory, processing capability, and available bandwidth simply don’t apply.

Third, traffic patterns. Web users generate roughly predictable load curves tied to time-of-day behavior. IoT sensor fleets produce bursty, event-driven traffic: a motion sensor grid fires simultaneously, a temperature threshold triggers 5,000 alarm publishes in 200 milliseconds, or a network partition resolves and 10,000 devices reconnect at once. Naik’s 2017 IEEE analysis confirmed that “none of [the major IoT protocols] is able to support all messaging requirements of all types of IoT systems” [2] — meaning protocol-specific test strategies aren’t a nice-to-have; they’re the minimum viable approach.

Fourth, network non-determinism. NIST SP 800-213 explicitly identifies that IoT devices are “heterogeneous system elements” where “many IoT devices lack features and functions that are common in conventional information technology (IT) equipment” [3]. These devices operate over cellular links with variable latency, mesh networks with multi-hop packet loss, and satellite connections with seconds-long round trips. Testing an IoT system over a clean LAN and expecting production-representative results is like load-testing a mobile app exclusively on a wired Ethernet connection — which is why network emulation is a critical component of realistic load testing.

For engineers who want to explore the protocol standards underpinning these differences, the IETF IoT Protocol Standards & Specifications page provides the normative reference documentation.

The Three Protocols That Define IoT Load Behavior: MQTT, CoAP, and AMQP Under Pressure

Every competitor article mentions these three protocols by name. Almost none of them explain what actually happens to each one when you push 10,000 concurrent devices through it. This section does.

MQTT Under Load: QoS Degradation, Broker Saturation, and Connection Storm Patterns

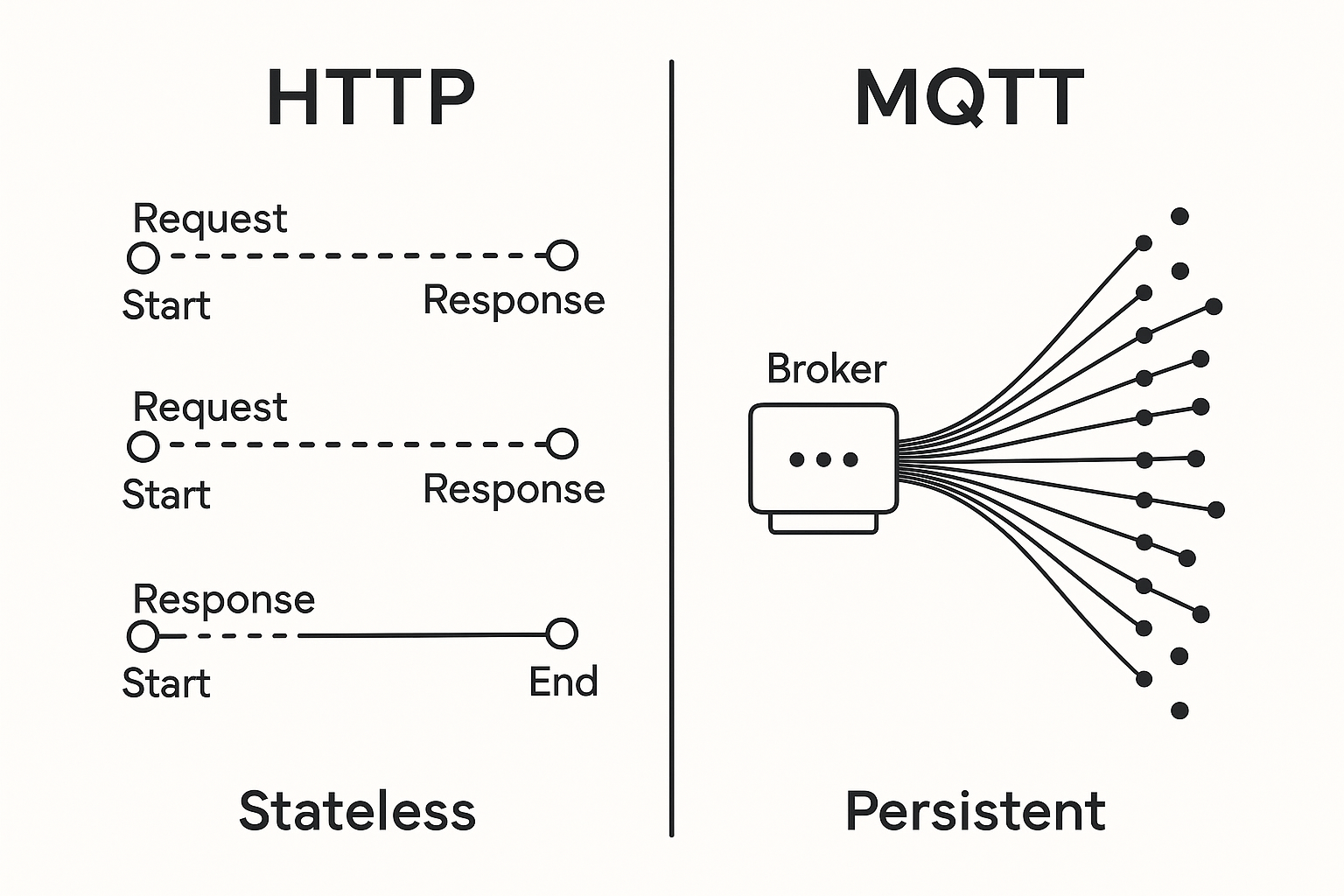

Consider a smart factory floor: 10,000 MQTT sensors publishing temperature, vibration, and humidity telemetry every 5 seconds. Under normal conditions, that’s 2,000 messages per second flowing through your broker — manageable for most production deployments. Now simulate a network partition that lasts 45 seconds, followed by restoration. All 10,000 devices attempt to reconnect simultaneously. This connection storm pattern is where MQTT brokers fail in production, and it’s the scenario most test plans never include.

The QoS level you choose fundamentally changes your load profile. QoS 0 (at-most-once) involves a single PUBLISH message from client to broker — minimal overhead, maximum throughput, but message loss under congestion is expected and undetectable without application-layer validation. QoS 2 (exactly-once) requires a four-message handshake per publish cycle: PUBLISH → PUBREC → PUBREL → PUBCOMP. At 10,000 concurrent clients publishing once per second at QoS 2, your broker processes 40,000 protocol-level messages per second instead of 10,000 — a four-fold amplification that narrows the gap between normal operation and saturation.

Key broker saturation indicators to monitor during load tests: queue depth growing faster than 500 messages/second net (messages in minus messages out), connection accept latency exceeding 500ms under reconnect storms, and broker memory utilization exceeding 85% sustained for more than 60 seconds. Last Will and Testament (LWT) messages — designed to notify subscribers when a device disconnects unexpectedly — also contribute to broker load during mass disconnect events, creating a secondary message burst precisely when the broker is already under reconnection pressure.

WebLOAD supports simulating thousands of concurrent MQTT clients with configurable QoS levels, LWT payloads, and topic subscription patterns, enabling teams to reproduce these exact connection storm and QoS degradation scenarios before production deployment.

For reference implementations of MQTT brokers commonly used as load test targets, the Eclipse IoT Open Standards & Protocol Resources catalog includes Mosquitto and other open-source implementations.

CoAP Performance Testing: Navigating UDP Unreliability and Congestion Control Constraints

Here’s the detail that surprises engineers coming from HTTP-centric testing: CoAP runs over UDP, not TCP. There’s no connection state, no guaranteed delivery at the transport layer, and no built-in congestion window. Your standard load tool’s connection model — which assumes TCP handshakes, persistent connections, and ordered byte streams — is architecturally wrong for CoAP from the first packet.

RFC 7252 specifies two message types: confirmable (CON) and non-confirmable (NON). Confirmable messages require an acknowledgment (ACK) from the server, with retransmission after a default ACK_TIMEOUT of 2 seconds and up to MAX_RETRANSMIT of 4 attempts [1]. Non-confirmable messages are fire-and-forget — faster, but with no delivery guarantee whatsoever.

The critical performance constraint is NSTART, which RFC 7252 defaults to 1 — meaning a CoAP client is permitted only one outstanding confirmable interaction with a given server at a time [1]. For a single sensor, this is fine. When you’re simulating 5,000 concurrent CoAP devices targeting the same server, each limited to one outstanding request, the server’s effective concurrency is capped by ACK processing speed, not network bandwidth. Under 2% packet loss typical of constrained IoT networks, retransmission storms compound: each lost ACK triggers a 2-second wait plus retry, during which the client’s NSTART slot is blocked, reducing effective throughput per client and increasing aggregate load on the server from retransmitted messages.

To test CoAP realistically, you must emulate network packet loss (1–5% is typical for 6LoWPAN deployments) and measure message delivery success rate, average retransmission count per interaction, and end-to-end latency distribution at p95/p99 — not just average response time. NIST SP 800-213 reinforces that these constrained network conditions persist in production because many IoT devices “do not allow for software updates” [3], meaning the protocol’s conservative defaults remain operative even as deployments scale.

For the full normative CoAP specification, the IETF IoT Protocol Standards & Specifications page hosts RFC 7252 and related constrained-network RFCs.

AMQP in Enterprise IoT: Channel Contention, Queue Depth, and Broker Throughput Limits

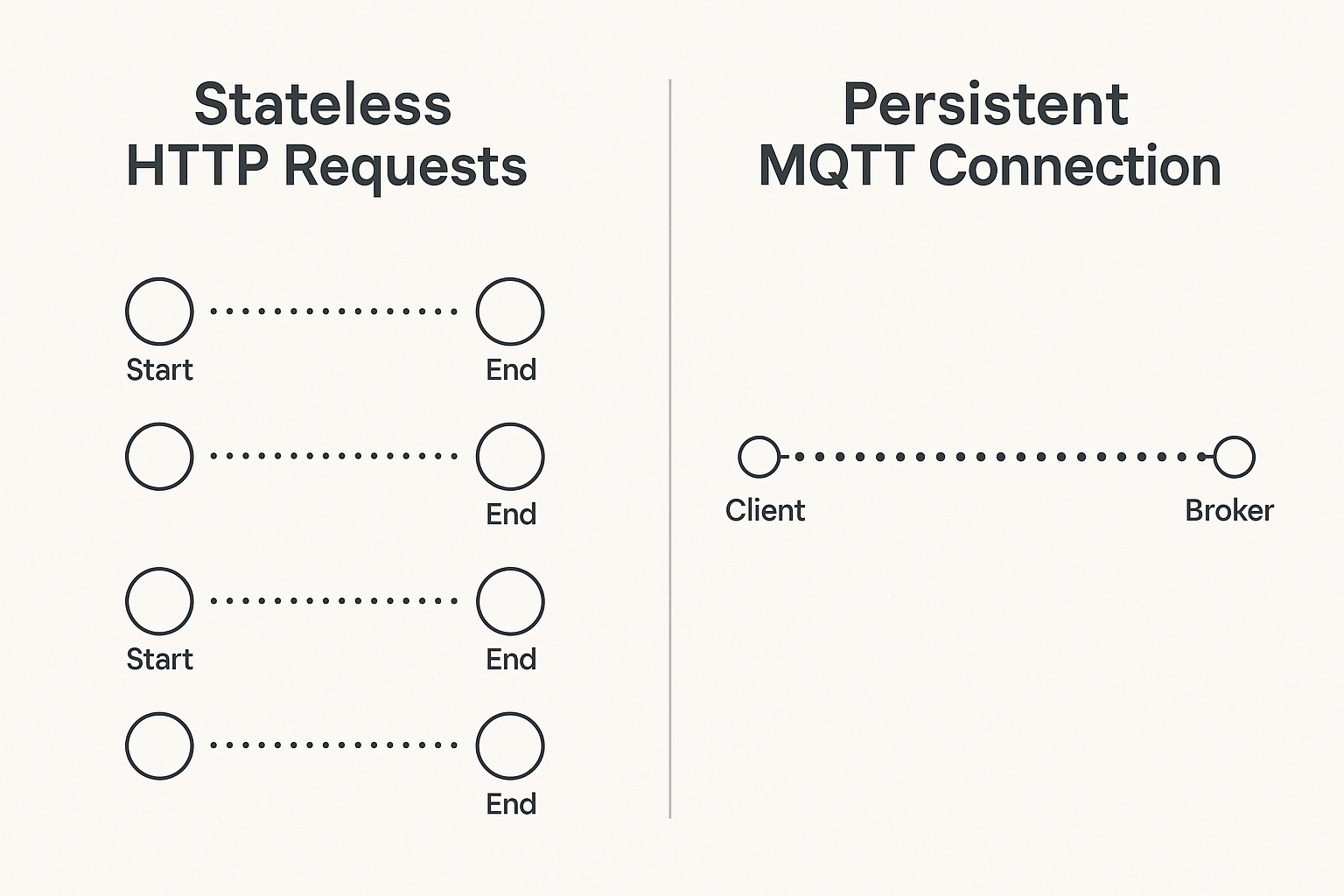

AMQP occupies the enterprise tier of IoT messaging: guaranteed delivery, transactional acknowledgments, complex exchange-based routing, and dead-letter queue support. Connected vehicle telemetry pipelines, industrial SCADA systems, and healthcare device networks frequently choose AMQP precisely because message loss is unacceptable. That reliability comes with a performance testing cost that teams underestimate.

AMQP multiplexes multiple virtual channels over a single TCP connection — the specification permits up to 65,535 channels per connection. In practice, throughput degradation begins well below that theoretical ceiling. When a single connection carries 500+ active channels, each with its own prefetch buffer and acknowledgment state, broker CPU and memory consumption per connection rises non-linearly. Naik’s IEEE analysis [2] confirmed that AMQP’s advanced feature set introduces overhead that must be explicitly measured under IoT-scale message volumes.

Queue depth is your primary broker health signal. During a load test, if unacknowledged messages in any queue grow beyond 50,000, you’re watching consumer lag outpace producer throughput — a condition that, left unchecked, will exhaust broker memory. The test pattern to validate: ramp producers to expected peak rate, then deliberately slow consumer acknowledgment (simulating a downstream database write bottleneck) and measure how quickly queue depth breaches your threshold. Understanding how to test and identify bottlenecks in performance testing is essential for detecting these queue depth issues before they cascade into production failures.

Dead-letter queues, prefetch counts, and acknowledgment modes (auto-ack vs. manual-ack) each alter the saturation curve significantly. Auto-ack removes messages from the queue immediately upon delivery, masking consumer processing failures. Manual-ack provides true exactly-once semantics but holds messages in memory until explicitly acknowledged, increasing broker memory pressure under high throughput.

RadView’s platform supports AMQP load generation, enabling teams to stress-test these channel contention and queue depth scenarios against their specific broker configuration.

Choosing the Right Protocol for Your Load Test: A Decision Framework

Rather than a generic comparison table, here’s a deployment-archetype-driven decision guide grounded in Naik’s IEEE finding that protocol selection is “a challenging and daunting task” dependent on the nature of the specific IoT system [2]:

• Smart metering network (100,000 residential meters, periodic reads every 15 minutes, battery-constrained): MQTT QoS 1 for meter-to-gateway communication. Your load test should focus on broker behavior during the 15-minute aggregation spike when all meters publish within a narrow window, and on reconnection behavior after cellular connectivity drops.
• Industrial automation pipeline (5,000 sensors, sub-100ms latency requirement, edge pre-processing, cloud analytics): MQTT device-to-edge, AMQP edge-to-cloud. Your load test must validate the full protocol bridge — measuring latency at each hop independently, not just end-to-end. The edge gateway’s protocol translation layer is frequently the undetected bottleneck.
• Connected vehicle telemetry (high-frequency GPS + OBD-II data, guaranteed delivery required, regulatory audit trail): AMQP end-to-end with manual acknowledgment. Load test focus: queue depth under burst conditions (fleet entering a tunnel and buffering 60 seconds of telemetry for simultaneous replay on reconnection).
• Constrained sensor mesh (battery-powered environmental sensors on 6LoWPAN, sub-10kbps bandwidth): CoAP non-confirmable for routine telemetry, CoAP confirmable for alarm events. Load test focus: message delivery success rate under 3–5% packet loss, retransmission overhead impact on battery budget.

When a single pipeline uses multiple protocols at different layers, your load test must validate each protocol independently and then test the full path end-to-end under combined load — because bottlenecks at protocol boundaries (e.g., an edge gateway translating MQTT to AMQP) only manifest when both sides are under pressure simultaneously.

Simulating 10,000 Devices: How to Build a Scalable IoT Load Generation Strategy

Simulation fidelity determines whether your load test predicts production behavior or provides false confidence. Most teams achieve low-fidelity simulation — connecting N clients that publish identical payloads at uniform intervals — and miss the failure modes that only emerge under realistic device diversity. High-fidelity simulation requires attention to four dimensions.

Connection Behavior Fidelity: Ramp Rates, Reconnect Logic, and the Connection Storm Problem

Never connect all virtual devices simultaneously at test start. Production device fleets come online gradually: factory shifts starting, vehicles entering cellular coverage, buildings powering up in the morning. A realistic ramp rate for a 10,000-device test might be 500 new client connections per second over 20 seconds — allowing you to measure broker connection-accept performance under sustained ramp.

Then, separately, test the connection storm scenario: simulate a network partition affecting all 10,000 devices, restore connectivity, and measure broker recovery. Your pass criterion: all 10,000 clients must re-establish connection and resume publishing within 30 seconds of network restoration, with broker connection accept latency remaining below 200ms at p99.

NIST SP 800-213 emphasizes that IoT deployments involve “heterogeneous system elements” [3] — which means your simulation should also vary connection parameters across the device fleet: different keep-alive intervals, different clean-session flags, and different subscription topic sets, reflecting real device diversity rather than synthetic uniformity.

Message Traffic Pattern Realism: Telemetry Cadence, Payload Diversity, and Burst Modeling

Three traffic patterns your simulation must cover:

• Periodic telemetry: 10,000 sensors publishing 200-byte temperature payloads every 30 seconds, producing ~333 messages/second steady-state. Measure broker throughput stability over 2+ hours of sustained load.
• Event-driven bursts: A motion detection grid where 2,000 sensors trigger simultaneously, each publishing a 500-byte event payload within 200ms. Measure broker burst absorption capacity and message delivery latency during the spike versus steady-state baseline.
• Command-response cycles: Cloud-to-device firmware update commands targeting 1,000 devices simultaneously, each device responding with a 50KB acknowledgment containing diagnostic data. Measure command delivery latency and response acknowledgment timeout rates.

Payload size matters more than most teams expect. A typical MQTT IoT sensor payload of 50–500 bytes behaves very differently at the broker level than a firmware OTA update message of several megabytes. Broker memory allocation, queue storage strategy, and network buffer management all shift when payload sizes cross the multi-kilobyte threshold.

Network Condition Emulation: Packet Loss, Jitter, and the Non-Deterministic IoT Network

Testing over a clean LAN produces dangerously misleading results. Real IoT networks introduce 1–5% packet loss on constrained 6LoWPAN meshes, 100ms baseline latency with ±50ms jitter on cellular IoT links, and periodic full-connectivity drops lasting 5–30 seconds on satellite or rural deployments.

Under 2% packet loss, MQTT QoS 1 will generate duplicate deliveries (the broker retransmits PUBLISH when ACK is lost, and the client may receive the same message twice). CoAP confirmable messages trigger retransmission after 2 seconds per RFC 7252 [1], and under sustained jitter, retransmission storms can amplify network load by 30–40% above the nominal message rate. AMQP channel recovery after a TCP interruption involves re-establishing the connection and replaying unacknowledged messages, introducing a burst that compounds with any existing consumer lag.

Your load test should inject these conditions using network emulation tools positioned between your load generators and the broker/server under test, and measure protocol-specific behavior changes at each degradation level.

Message Broker Load Testing: Preventing the Bottleneck That Silences Your Entire IoT Fleet

The broker is where IoT systems fail first and fail silently — queue depth grows, latency creeps upward, and consumers fall behind long before any alarm fires.

Throughput Saturation Testing: Finding Your Broker’s True Ceiling Before Production Does

Step-by-step methodology:

1. Establish baseline: 1,000 messages/second for 10 minutes. Record broker CPU, memory, queue depth, and p99 delivery latency.
2. Increase load by +1,000 messages/second every 5 minutes.
3. At each step, record the same metrics. Plot queue depth growth rate (messages/second net = messages published minus messages consumed).
4. Identify the saturation inflection point: the load level at which queue depth growth rate turns positive and stays positive (typically >500 messages/second net accumulation), or broker CPU sustains above 90% for more than 60 seconds, or p99 delivery latency exceeds 500ms.
5. Your broker’s production capacity ceiling should be set at 70% of this saturation point to provide headroom for burst absorption.

WebLOAD’s stepped load ramp capabilities enable this incremental throughput testing methodology with real-time metric collection at each load level.

Architectural Resilience Patterns: Partitioning, Clustering, and Failover Validation

Single-broker architectures are inherently insufficient for enterprise IoT — NIST SP 800-213’s guidance on deployment scale and heterogeneity [3] makes this clear from a standards perspective.

Topic-based partitioning distributes load by sharding device connections across broker instances. Example: 10,000 MQTT clients partitioned across 4 broker instances by device ID hash range, with each broker handling approximately 2,500 client connections and 250 topics. Your load test validates this by running all 10,000 simulated devices and measuring per-broker utilization balance — a variance exceeding 20% between the most-loaded and least-loaded broker indicates a hash distribution problem.

Failover validation: during a sustained 10,000-device load test, kill one broker node and measure: (a) time until all affected clients reconnect to a surviving node (target: <15 seconds), (b) number of in-flight messages lost during failover (target: 0 for QoS 1+), and (c) whether message ordering guarantees are maintained after recovery. This test catches broker clustering configurations that look correct in documentation but fail under real concurrent load.

Edge Computing Latency and Telemetry Validation: Testing the Layer Most Teams Ignore

The edge layer — where IoT devices first connect, data is pre-processed, and routing decisions are made — is the most common blind spot in enterprise IoT performance testing. NIST SP 800-213 notes that IoT devices are frequently “integrated as system elements… well after the information system has been initially deployed” [3], meaning the edge layer often wasn’t designed for the device volumes it eventually handles.

Measuring Edge-to-Cloud Latency Under Sustained IoT Load: What to Instrument and Where

Measure three latency segments independently, not just end-to-end:

• Device-to-edge: Sensor publish timestamp to edge gateway receipt timestamp. For industrial control systems, p99 target: <20ms.
• Edge processing: Gateway receipt to post-transformation/routing completion. For real-time monitoring, p99 target: <20ms. This is where filtering logic, protocol translation (MQTT→AMQP), and local analytics introduce latency that varies with message complexity.
• Edge-to-cloud: Gateway publish to cloud broker ingestion confirmation. For connected vehicle telemetry with a p99 SLA of <200ms end-to-end, this segment gets roughly 160ms budget after the first two segments consume their share.

Instrument by embedding monotonically increasing timestamps in message payloads at each boundary, then compute per-segment latency distributions at p50, p95, and p99. End-to-end averages mask segment-specific bottlenecks — an edge processing spike that only affects p99 is invisible in mean latency but causes SLA violations for 1% of all messages.

Test both steady-state (normal publish cadence) and burst scenarios (5x baseline rate for 30 seconds, simulating a sensor event storm). Burst latency is typically 3–8x higher than steady-state at the edge processing layer due to filtering queue backpressure.

For broader enterprise IoT reliability guidance, the NIST IoT Cybersecurity & Standards Program provides authoritative reference material.

Telemetry Validation Under Load: Detecting Data Loss, Ordering Violations, and Corrupt Payloads

Performance isn’t just speed — it’s data integrity under pressure. Three validation checks to build into every IoT load test:

• Sequence gap detection: Assign monotonically increasing sequence numbers per device in test payloads. At the consumer end, verify that no sequence numbers are missing. Under MQTT QoS 0 with 2% packet loss, expect 1.5–2.5% message loss — your test should quantify this precisely and validate it against your application’s tolerance threshold.
• Ordering violation detection: For protocols and applications that assume ordered delivery (AMQP with a single consumer, MQTT within a single topic), verify that messages arrive in sequence-number order. Out-of-order delivery under load typically indicates broker queue rebalancing, consumer-side thread contention, or edge gateway batching behavior.
• Payload integrity validation: Hash each test payload at the producer and validate the hash at the consumer. Under extreme broker memory pressure, message truncation or corruption can occur — particularly with brokers that swap messages to disk when memory thresholds are breached. A 0.01% corruption rate at 10,000 messages/second means one corrupted message every 10 seconds in production.
